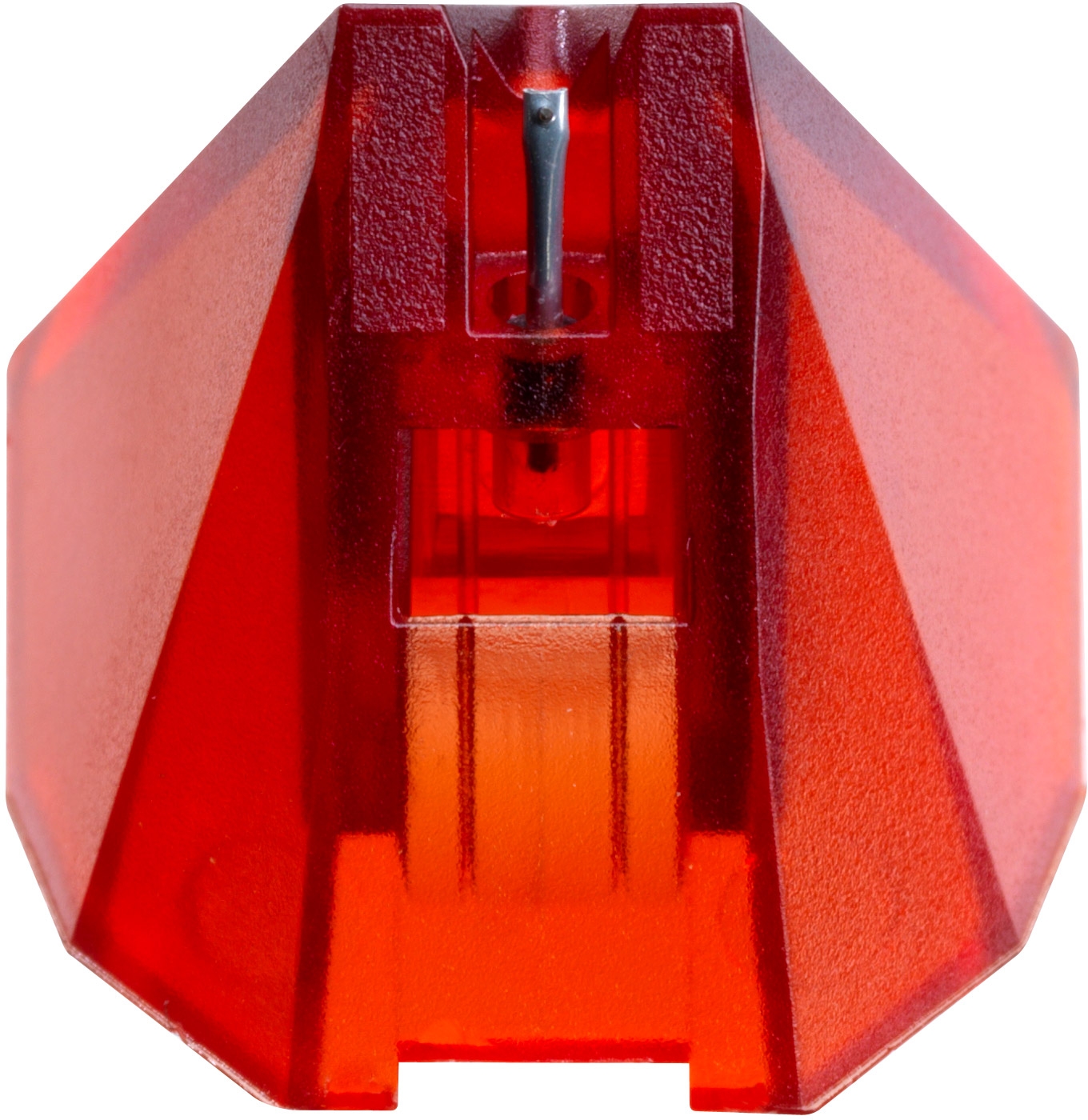

Ortofon Hi-Fi 2M Red Replacement Stylus

Description Ortofon Hi-Fi 2M Red Replacement Stylus   View Ortofon Support >> View Product Guide >>   Features 2M Silver phono cartridge is an OEM (Original Equipment Manufacturer) model that takes most of the characteristics of the 2M Red. 2M Silver’s special feature is silver plated copper coils, the same coil wire material as in the 2M Bronze and Black models, with a reduced number of windings. 2M series styli are interchangeable within the below combinations: – 2M Red, 2M Blue and 2M Silver – 2M Bronze, 2M Black and 2M Black LVB 250 – 2M Mono and 2M 78 Special for 2M Red, 2M Blue and 2M Silver phono cartridges: – 2M Silver will be an upgrade compared to 2M Red due to a special suspension and silver plated copper wire material. – 2M Blue is an upgrade compared to both 2M Red and 2M Silver thanks to Nude Elliptical diamond which retrieves information from the groove with a higher accuracy.   Specifications Frequency response – 20-20.000 Hz 3 / – 1 dB Tracking ability at 315Hz at recommended tracking force *) – 70 µm Compliance, dynamic, lateral – 20 µm/mN Stylus type – Elliptical Stylus tip radius – r/R 8/18 µm Equivalent stylus tip mass – 0.5 mg Tracking force range – 1.6-2.0 g (16-20 mN) Tracking force, recommended – 1.8 g (18 mN) Tracking angle – 20° *) Typical value Stylus colour – Red Recommended for following cartridges – 2M Red, interchangeable with 2M Blue. Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance.
