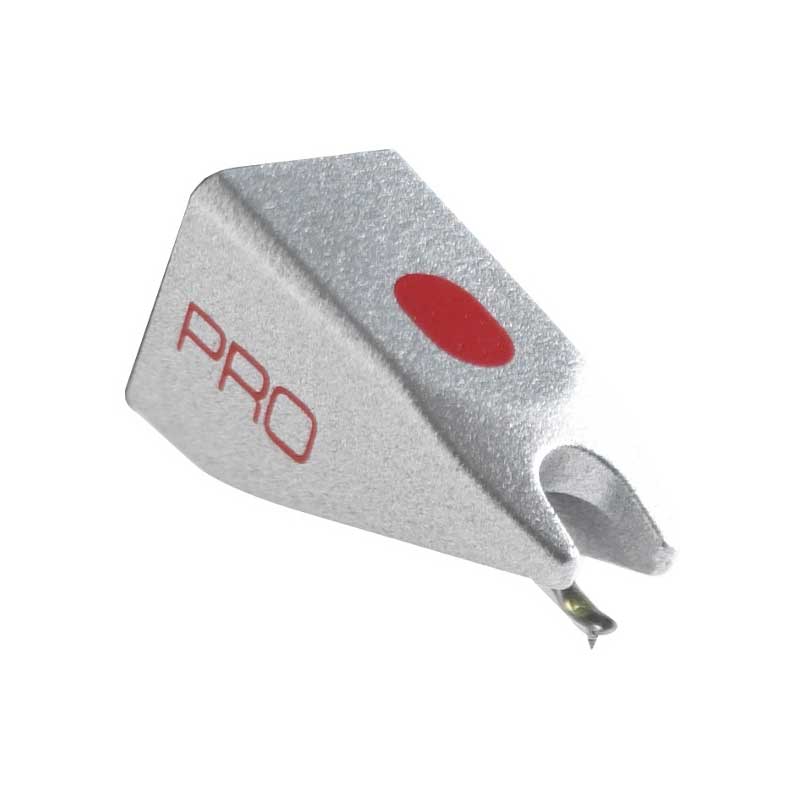

Ortofon DJ Pro Replacement Stylus

Description Ortofon DJ Pro Replacement Stylus The Ortofon DJ Pro Replacement Stylus provides a great balance of sound quality with tracking ability, for virtually any style of music. With flat, transparent sound across the spectrum and excellent handling ability, the Pro Series represents one of the longest running values in DJ cartridges. Ideal choice for talented, but less experienced DJs!   View Ortofon Support >>   SPECIFICATIONS Output voltage at 1000Hz, 5cm/sec.  –  5 mV Channel balance at 1kHz  –  1,5 dB Channel separation at 1kHz  –  20 dB Channel separation at 15 kHz –  15 dB Frequency response  –  20-20.000 Hz 3/-2 dB Tracking ability at 315 Hz at recommended tracking force  –  70 μm Compliance, dynamic lateral –  7 μm/m N Stylus type –  Spherical Stylus tip radius –  R 18 μm Tracking force range  –  3.0-5.0 g (30-50 mN) Tracking force recommended –  4.0 g (40 mN) Tracking angle –  20° Internal impedance, DC resistance –  750 Ohm Internal inductance –  450 mH Recommended load resistance –  47 kOhm Recommended load capacitance  –  200-600 pF Concorde/OM cartridge weight –  18.5 / 5.0 g Compatible with cartridges –  Pro
